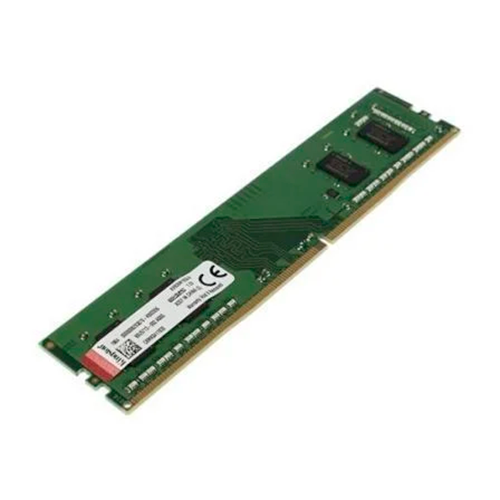

Memoria RAM DDR4 1.2V de 4GB Kingston

Especificaciones:

• CL(IDD) 14 cycles

• Row Cycle Time (tRCmin) 46.75ns (min.)

• Refresh to Active/Refresh 260ns (min.)

• Command Time (tRFCmin)

• Row Active Time (tRASmin) 29.125ns (min.)

• Maximum Operating Power TBD W*

• UL Rating 94 V - 0

• Operating Temperature 0°C to 85°C

• Storage Temperature -55°C to +100°C

*Power will vary depending on the SDRAM used.

Características:

• Power Supply: VDD = 1.2V Typical

• VDDQ = 1.2V Typical

• VPP - 2.5V Typical

• VDDSPD = 2.25V to 3.6V

• On-Die termination (ODT)

• 16 internal banks; 4 groups of 4 banks each

• Bi-Directional Differential Data Strobe

• 8 bit pre-fetch

• Burst Length (BL) switch on-the-fly BL8 or BC4 (Burst Chop)

• Height 1.18” (30.00mm)

P/N: HX424S14IB/4
