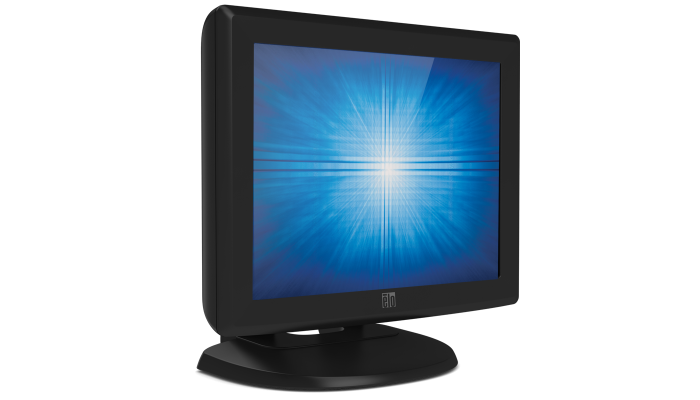

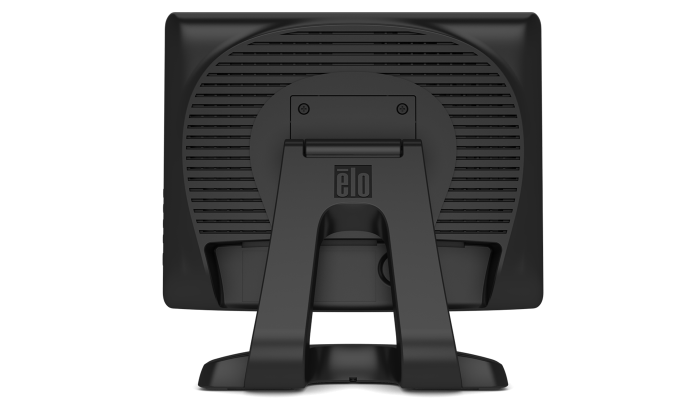

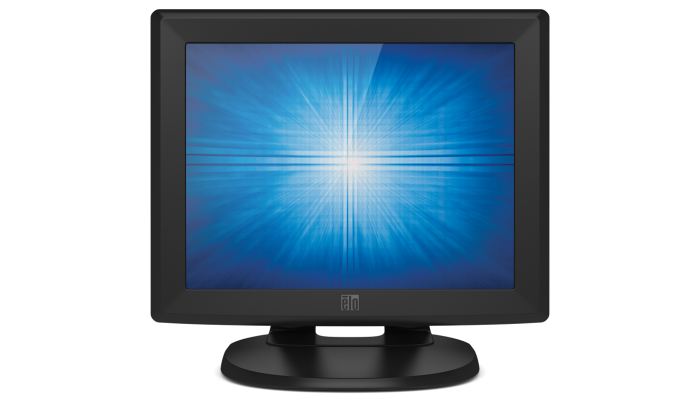

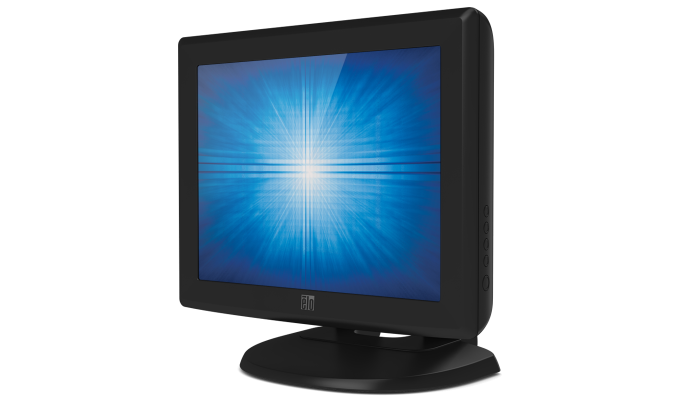

Monitor Touch Resitivo ELO 12

Color del empaque                         Negro

Tecnología y capacidad táctil         Resistiva de 5 hilos (AccuTouch®) - Táctil simple SAW (IntelliTouch® de ondas acústicas de superficie) - Táctil simple
Surface Capacitive (SCAP) - Single Touch

Tamaño de la diagonal                    12.1'' diagonal, matriz activa TFT LCD (LED)

Radio de apariencia                        4:3

Área activa (mm)                             9.7" x 7.3" / 246 mm x 185 mm

Resolución                                      800 x 600 at 60 Hz

Otras resoluciones disponibles       800 x 600 at 56, 60, 70 or 75 Hz

                                                        640 x 480 at 60, 66 Hz (Mac), 72 or 75 Hz

Ángulo de visión                              Horizontal: ±70° or 140° total / Vertical: ±50° or 100° total

Cantidad de colores                        262,000

Brillo (tipico)

Tiempo total de respuesta (tipico)   35 msec

Radio de contraste                          500:1

Exhibidor/Monitor/Display en pantalla  Controls (side): menu, up, down, select, power Settings: contrast, brightness, H/V position, recall default, RGB (color temp), OSD exit, clock, phase, sharpness, OSD H/V position, OSD time, auto adjust, input select
Languages: English, German, Spanish, Japanese, French
Lockouts: power, user controls

Formato de entrada de video                    Analog VGA

Entrada del conector para video señal     Mini D-Sub 15-Pin VGA type

Consumo de energía (típico)                    16W

Fuente de alimentación                            Internal AC, Optional external DC (power brick)

Voltaje de entrada                                    AC: 85-265 VAC, 47–63 Hz / DC: 12.0 V ± 0.75V

Conector de entrada de audio                 AC: IEC 60320 C6 / DC: Coaxial power jack (2 mm pin diameter, 6.4 mm barrel diameter, 8.8 mm barrel length)

Frecuencia de entrada                            Horizontal: 31.5-48 kHz / Vertical: 56.3-75 Hz

Dimensiones del monitor (sin soporte)    11.9" x 6.6" x 11.3" / 301 mm x 168 mm x 286 mm

Dimensiones de la caja de envio             14.77" x 10.24" x 14.38" / 375 mm x 260 mm x 365 mm

Peso sin empaque                                   8.2 lbs / 3.7 kg

Peso con empaque                                 13.6 lbs / 6.2 kg

Temperatura de operación                      0°C to 40°C / 32°F to 104°F

Temperatura de almacenamiento            -20°C to 60°C / -4°F to 140°F

Humedad                                                 Operating: 20% - 80% Storage: 10% - 90%

Capacidad de sellado                              Touchscreen sealed to bezel

                                                                Touchscreen sealed to LCD

MTBF - Tiempo medido entre fallos (medida de confiabilidad de un dispositivo o sistema)

Opciones de montaje                               75 mm VESA mount

Otras características                               Security lock receptacle

Aprobaciones y declaraciones reglamentarias    UL, cUL, TÜV-GS, CE, FCC, IC, VCCI, C-Tick

                                                                            Class B

Cables de energía                                               North American and European AC power cables

                                                                            are included. For touchmonitors being shipped

                                                                            to the United Kingdom, add a UK AC power cable

                                                                            at no cost by specifying Elo P/N - E540272.

Fuente de alimentación de reemplazo de CC      The monitor may also be powered with DC

                                                                            voltage. An optional 12V DC power brick, part

                                                                            number E785134, is available at additional cost.

Cable de energía AC                                           AC power cables for power brick are also

                                                                            available at additional cost:

Cables táctiles/de video                                      Detachable touch and video cables are included
